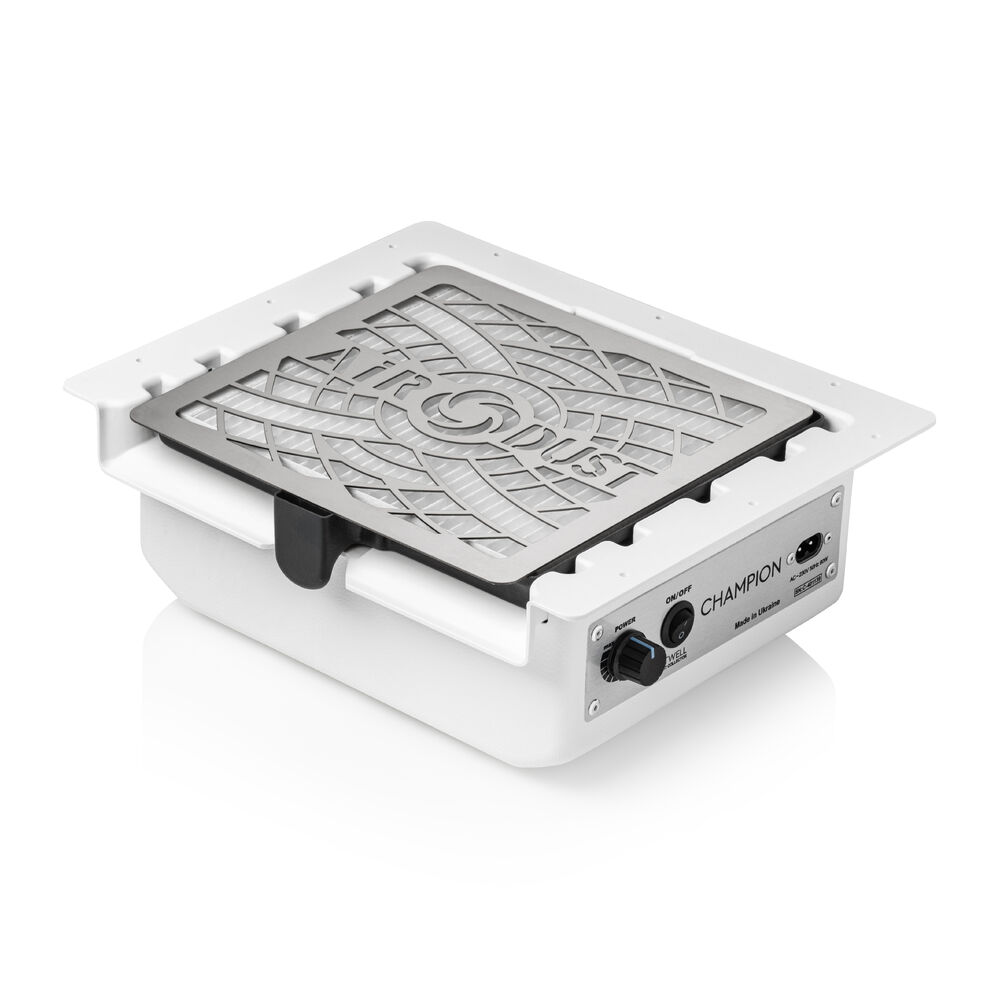

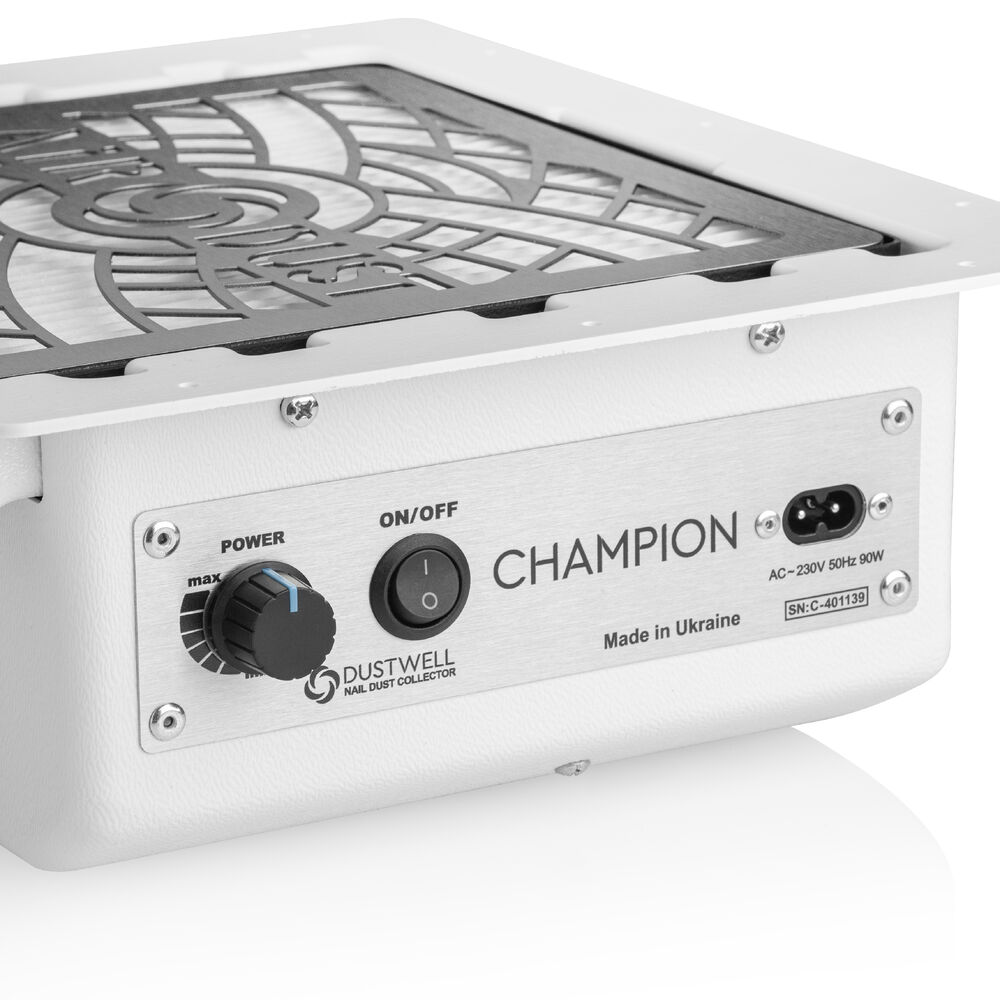

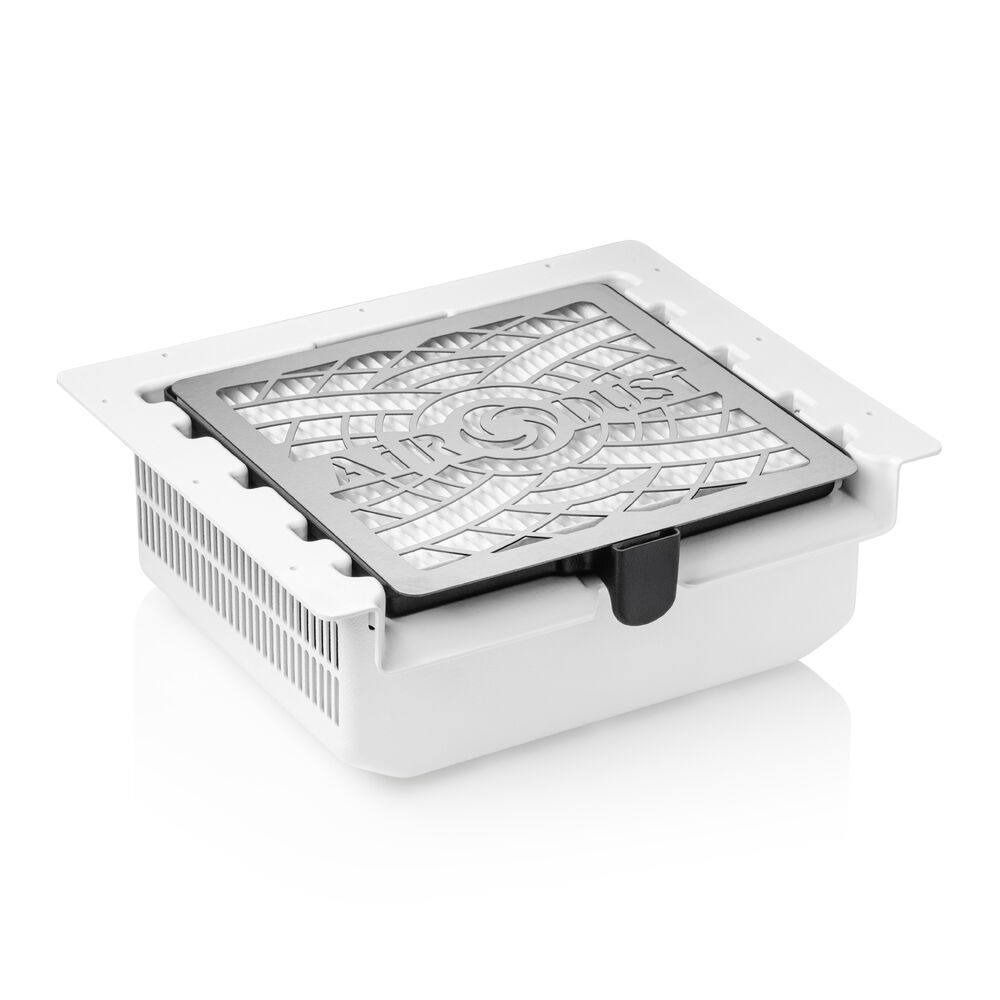

Description Professional built-in manicure dust collector Dustwell Champion
The Dustwell Champion manicure extractor is a powerful professional stationary built-in equipment. This extractor is ideal for intensive use in salon conditions.

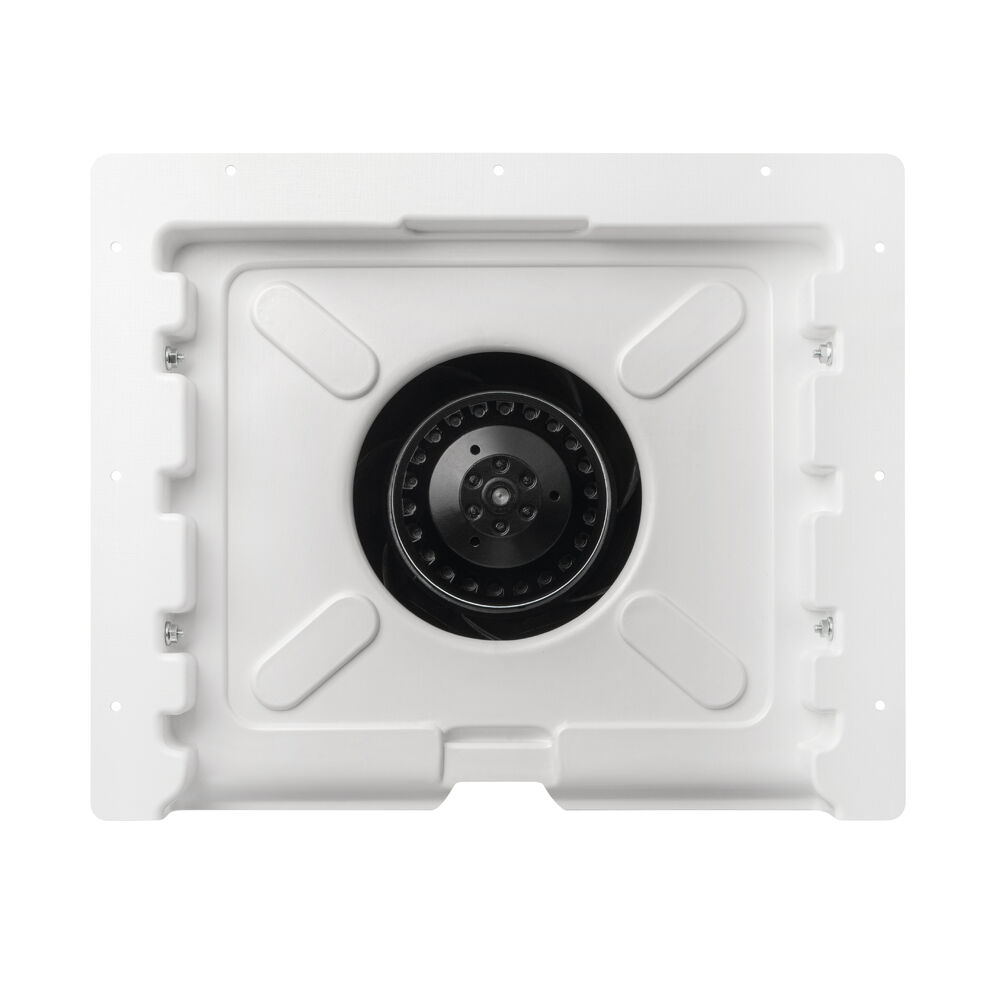

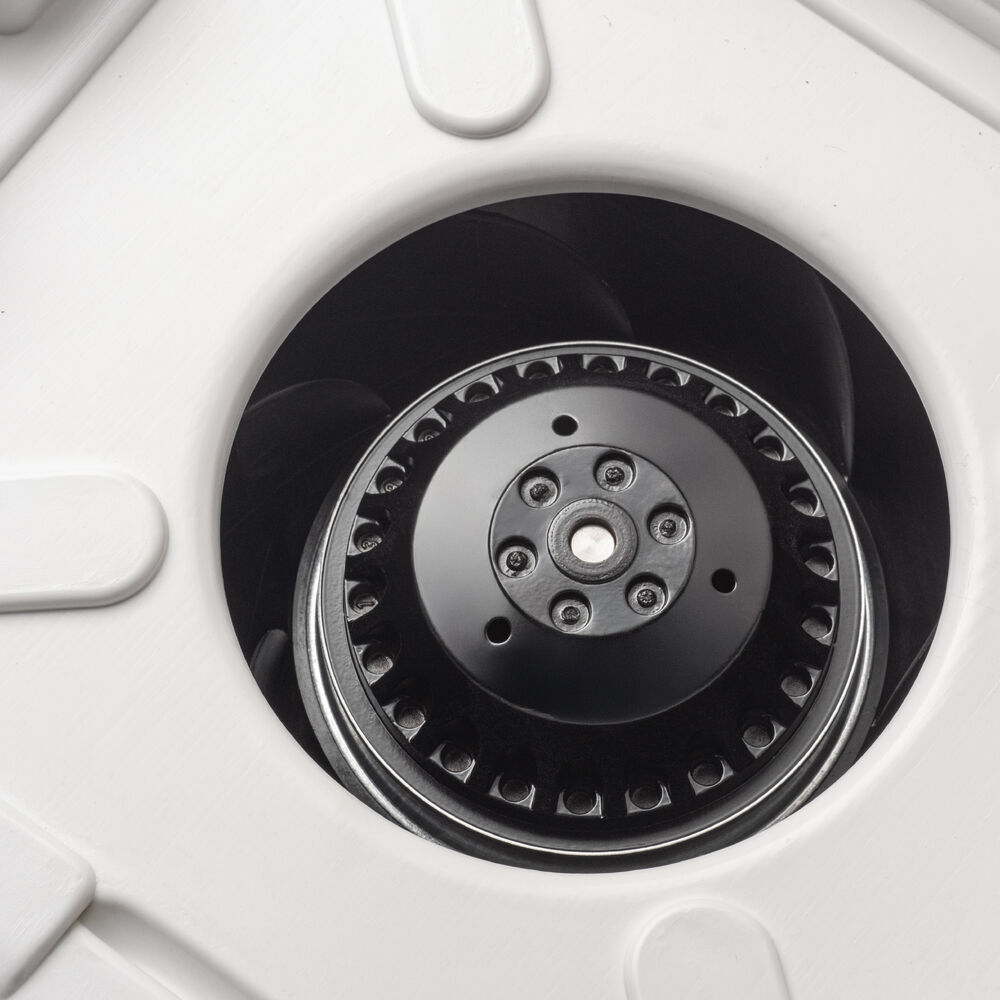

The Dustwell Champion is equipped with a high-quality German-made engine, which ensures efficient operation with minimal noise.
Equipped with a HEPA filter, this extractor guarantees 100% cleaning from sawdust formed during manicure procedures.
Due to its reliability and performance, the Dustwell Champion extractor is an indispensable assistant in ensuring cleanliness and comfort during manicure procedures.
Characteristics:
- Power (adjustable): 48-90 Watts
- Engine speed: 2500-3000 per minute
- Power supply: 220 V network
- Noise level: 48-74 dB
- Weight 3.5 kg

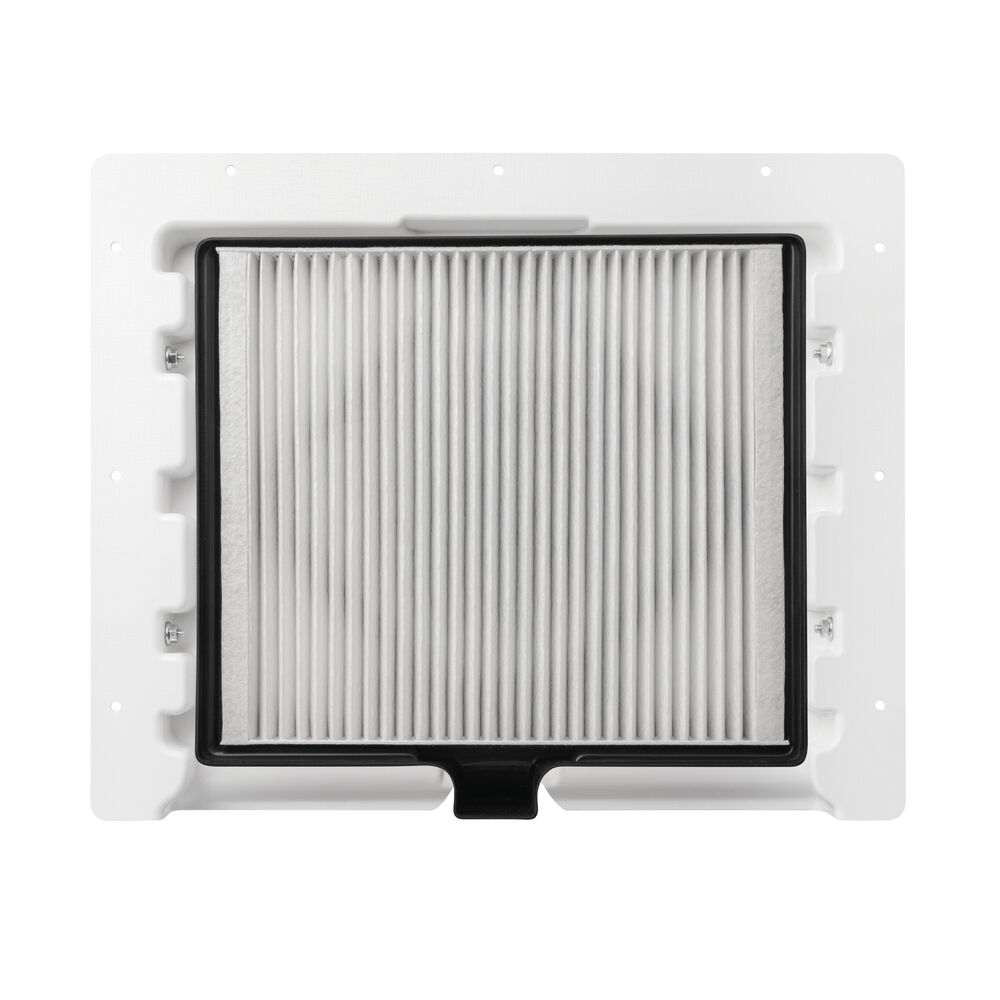

Rules for care of the hood with a HEPA filter
Wipe the filter over a wet sink after each work session.
It is not recommended to wash the filter for this hood under water! Only dry cleaning is recommended. Filters that can be washed have a special marking (usually W).
With average load, it is recommended to change the filter once every 3-4 months. In case of intensive use, the replacement is carried out once a month.
The product is certified in Ukraine and has a certificate from the European Agency for Certification of Production, Services and Management Systems.

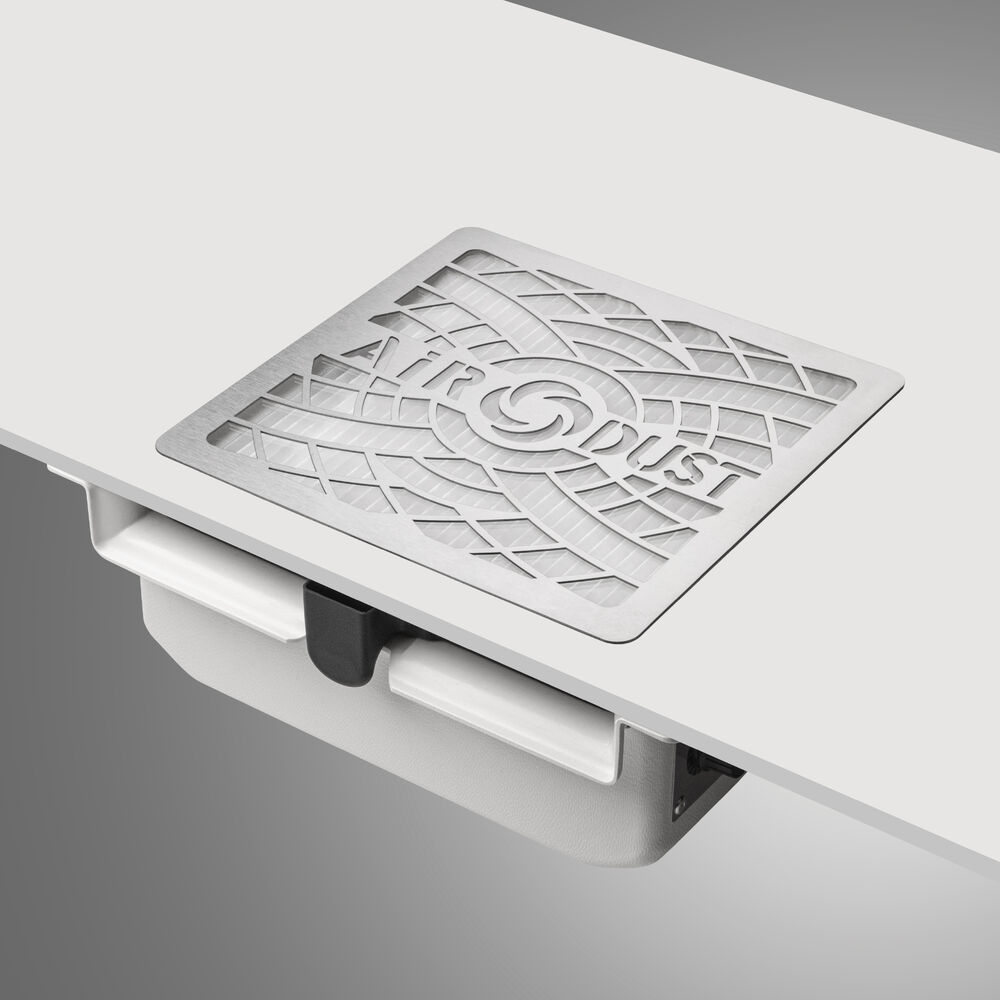

Installing the hood in the table
Step 1. Cut a hole in the table
Cut a hole in the table measuring 170 x 200 mm according to the diagram. Indent from the edge of the table S-6 cm. We recommend placing the hole in the center of the master's workplace.
Step 2. It is advisable to edge the hole so that the ends are not visible
Step C. Installing the bottom part
Attention! Before installing the bottom part of the product, make sure that the screws for fastening do not exceed the thickness of your table (replace. with screws of shorter length).
Place the bottom part of the hood according to the hole made in the table and fix it with screws using a screwdriver.. Screw the bottom part in turn, in parallel holes, to avoid kinks. Do not tighten the screws all the way until you install all the screws in the mounting locations.

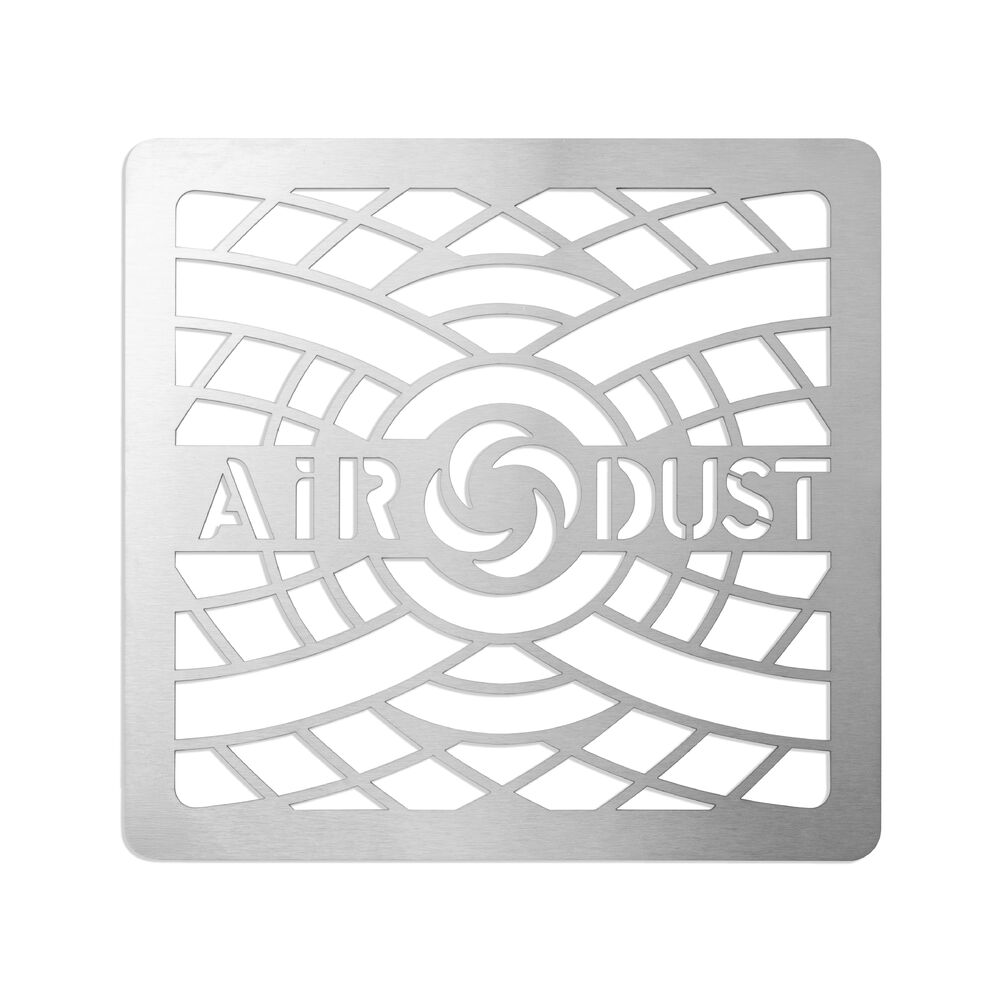

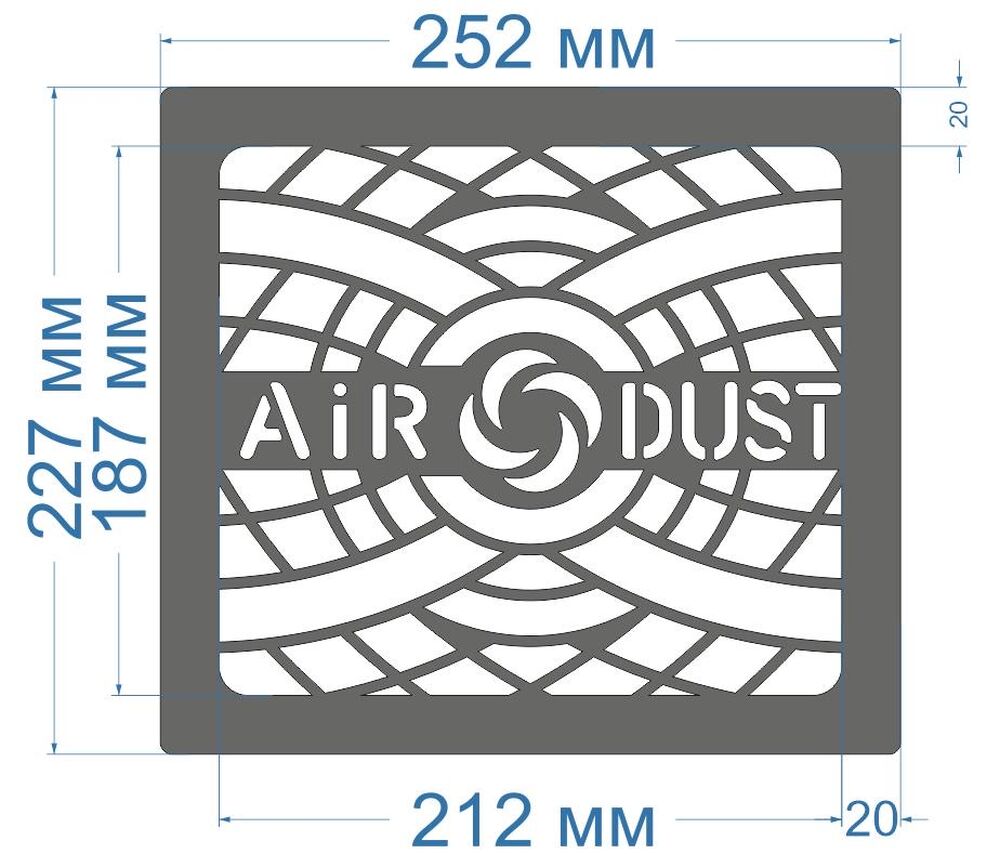

Step 4. Installing the cover (lattice) on the table
Remove dust and dirt around the hole, degrease the surface, let it dry. Remove the protective part from the double-sided tape that is on the cover. Attach the cover parallel to the hole on the table, press the cover evenly against the tabletop and hold for 1 minute.
The hood is ready for use.
